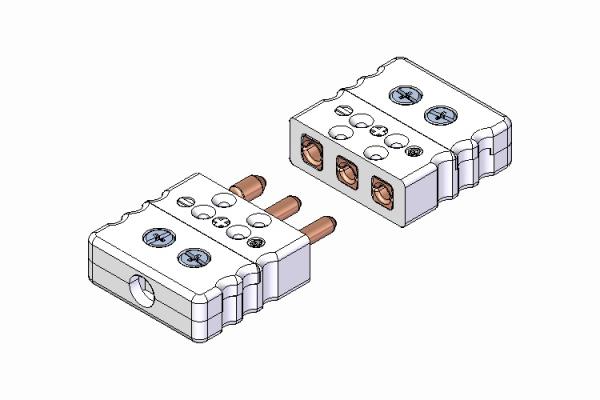

Miniature RTD 3 Socket Female Jack
MJ-U Miniature RTD 3-socket connectors are designed for 3-wire RTDs and feature a glass filled thermoplastic body and cover and matching copper sockets which are mated with a male flat pin connector. Feature a sandwich style screw connection. Wire sizes up to 24 AWG (0.2mm) and accepts cable sizes up to .17” diameter or (4.5mm). Optional 3-circuit thermocouple connectors for optional ground or drain wire are available in ASTM/ANSI or optional IEC and DIN color codes. Maximum temperature rating of 392° (200°C).
